How to Create Oracle Forms by Using Wizard ?


Oracle Forms Developer
Oracle Forms is a technology developed by Oracle to develop database driven web applications quickly and easily. It is a component of Oracle Fusion Middleware Technology of Oracle corporation. By using Oracle Forms you can develop even advanced web applications more easily. While developing web applications, you can use graphical methods such as wizards for faster development. Here are some easy steps with screenshots for developing oracle forms by using wizard.

Steps for Creating Oracle Forms by Using Wizard



1. At first start Weblogic Server by clicking on Start Weblogic Server option under Oracle Forms of Oracle Instance from start menu.

How to Create Oracle Forms by Using Wizard ? -Start Weblogic

2. Give your weblogic username and password.
3. Start form builder application from the start menu, which is located under Developer Tools of oracle instance folder.

How to Create Oracle Forms by Using Wizard ? - Start Oracle Form

4. After opening form builder application, Click on data block option and click on + sign above under forms module of Object Navigator.


 5. Click on "Use the Data Block Wizard" option to create a form by using wizard.

How to Create Oracle Forms by Using Wizard ? - New Data Block

  6. Click on "Table or View" option to create from Table or View.

How to Create Oracle Forms by Using Wizard ? - Data Block

7. Click on "Browse" button to open Table or View. Give User name, Password and Database name to connect to the database.

How to Create Oracle Forms by Using Wizard ? - Connecting Database


8. After configuring the Data Block, Click on "Create the data block, then call the Layout Wizard" option and finish the wizard.

How to Create Oracle Forms by Using Wizard ? - Finish Data Block

9. Select "New Canvas" option from the combo box to create New Canvas to locate data blocks physically.

How to Create Oracle Forms by Using Wizard ? - Create Canvas

10. Specify the required Width and Height of the fields.

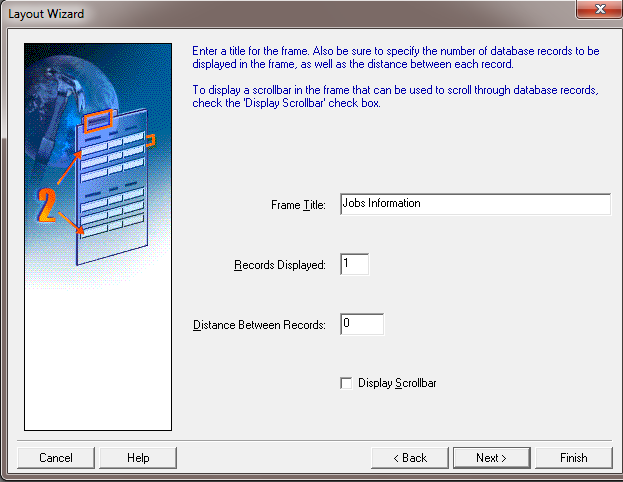

 11. Give the Title of the Frame, Number of Records to be Displayed and the Distance Between Records.

How to Create Oracle Forms by Using Wizard ? - No of Records

 12. After completing the wizard click on Finish to finish the wizard. Then you can view the design view as below.

How to Create Oracle Forms by Using Wizard ? -Form Design View

 13. Run the form to view this form in browser.
